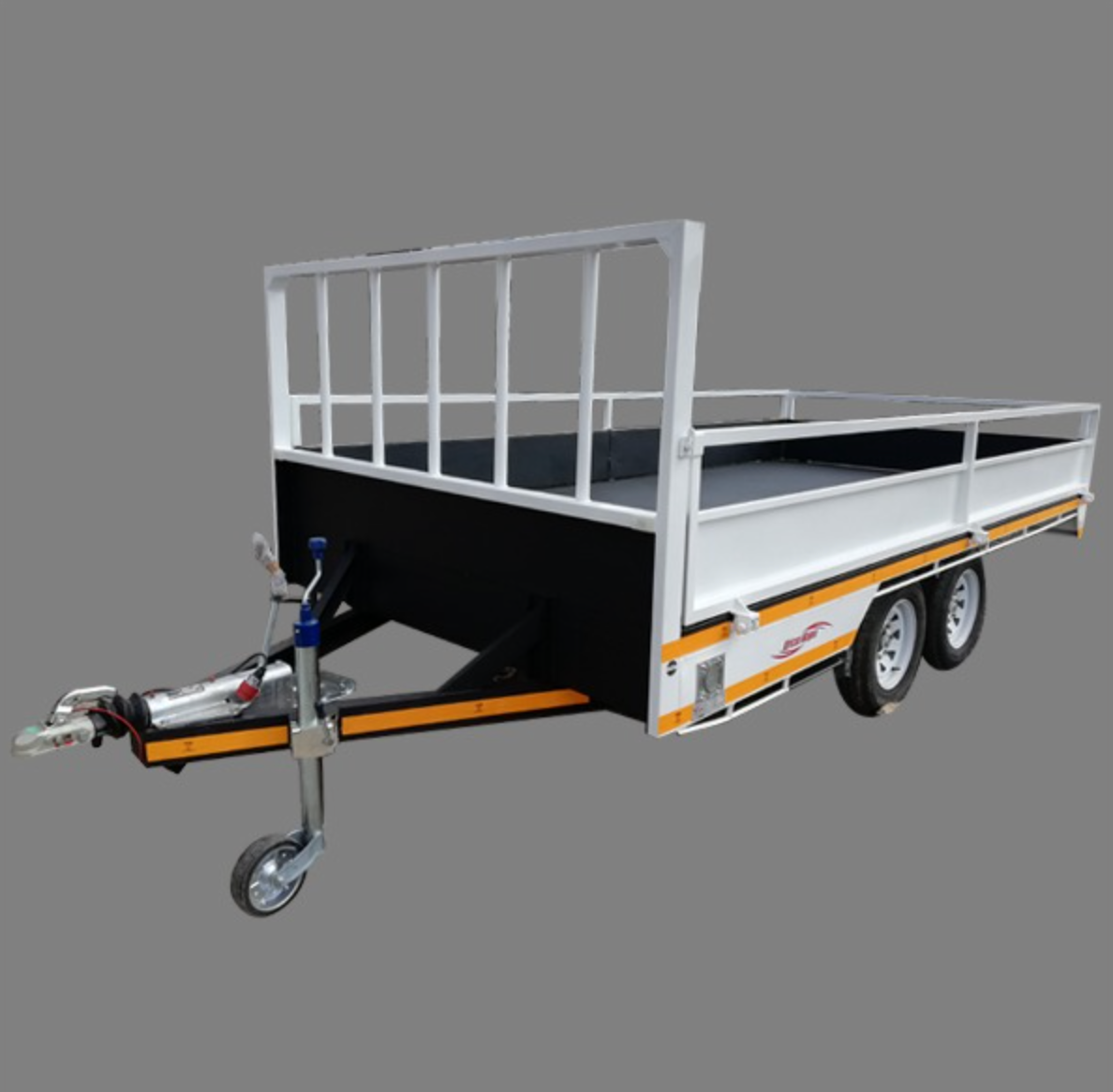

2.3 Ton Double Axle Dropside Trailer 4.0m
Original price was: R64,900.00.R58,400.00Current price is: R58,400.00. incl. VAT
The dropside trailer 4m is a braked 2.3 ton 4.0 m x 2.2 m unit with 300 mm drop sides and a rear gate that fold flat. Wide enough for paired pallets, it covers both the flatbed and the loose-load job on a 2.0 mm floor and twin 1 600 kg axles.
- 2500 kgGVM
- Tandem brakedAxle
- 4000 mmDeck length
- Tandem brakedBraking
Availability: 3 in stock (can be backordered)
WhatsApp about this trailerAbout this trailer
The dropside trailer 4m is a longer, wider working trailer at 4.0 m by 2.2 m, plated at 2 300 kg gross, with 300 mm drop sides and a rear gate. The extra width over the 3.0 m unit takes paired pallets and wide loads, while the fold-flat sides keep it as versatile as a flatbed when you need an open deck.
What the dropside trailer 4m carries
At 2.2 m wide with sides that drop, this is the do-everything trailer for a builder or farm. Sides down, it loads two pallets side by side or a wide load by forklift; sides up, it carries sand, rubble, bagged material or loose cargo without spilling. One trailer covers the flatbed job and the tipper-style loose-load job, which is why the 4 m dropside is such a common working choice.
Build and deck
The deck is a 2.0 mm steel-plate floor on a 76 x 38 x 5 mm open-channel ladder-frame chassis, wheels under the trailer to keep the full 2.2 m width. The 300 mm drop sides and rear gate are plated on a steel frame and hinge flat. It runs twin 1 600 kg leaf-sprung axles, is braked, and is finished in painted 2K Duco.
Specifications
| Type | Double axle dropside trailer |
|---|---|
| GVM | 2 300 kg |
| Deck size | 4.0 m x 2.2 m |
| Sides | 300 mm drop sides and rear gate, plated |
| Floor | 2.0 mm steel plate, wheels under deck |
| Chassis | 76 x 38 x 5 mm open-channel ladder frame |
| Axles | Two, leaf sprung, 1 600 kg each |
| Braking | Braked |
| Finish | Painted 2K Duco |
| Tare mass | Confirmed in writing on order |
Payload, GVM and licensing
Plated at 2 300 kg gross on 1 600 kg axles and braked as standard, this trailer needs a tow vehicle with matching braked towing capacity. The supplier publishes no dependable tare, so we confirm the empty mass and payload in writing before you order. Load securing, sides up or down, sits with the towing driver under the National Road Traffic Act.
Where it sits in the range
This is the mid dropside. The 3.0 m dropside is more compact, while the 3 ton 4.0 m dropside plates higher on the same deck. For a permanently open deck, see the matching 4.0 m flatbed. Compare the range under double-axle cargo trailers.
Delivery, warranty and ordering
Delivery is free anywhere in South Africa on orders over R20 000; see our delivery page. The builder warranty, which we administer on your behalf, is under warranty, and collection from Hartswater is welcome. For a written quote, use the quote request form.
Full specification
| GVM (kg) | 2500 kg |
|---|---|
| Axle Configuration | Tandem braked |
| Braking | Tandem braked |
| Deck Length (mm) | 4000 mm |
| Deck Width (mm) | 2000 mm |
| Suspension | Leaf spring |
| Finish | Painted 2K Duco |
| SKU | TSA-UCT-DS40-149 |
Questions about this trailer
How wide is the dropside trailer 4m?
The deck is 2.2 m wide, enough for two pallets side by side, with 300 mm drop sides that fold flat for loading.
What can it do that a flatbed cannot?
With the sides up it holds loose loads like sand, rubble or bagged material; with them down it loads like a flatbed. One trailer covers both jobs.
Is it braked?
Yes, braked as standard at 2 300 kg GVM.
What is the payload?
It is plated at 2 300 kg on 1 600 kg axles. The supplier publishes no reliable tare, so we confirm empty mass and payload in writing before you order.
Do you deliver nationwide?
Yes, free on orders over R20 000, with collection from Hartswater available.
