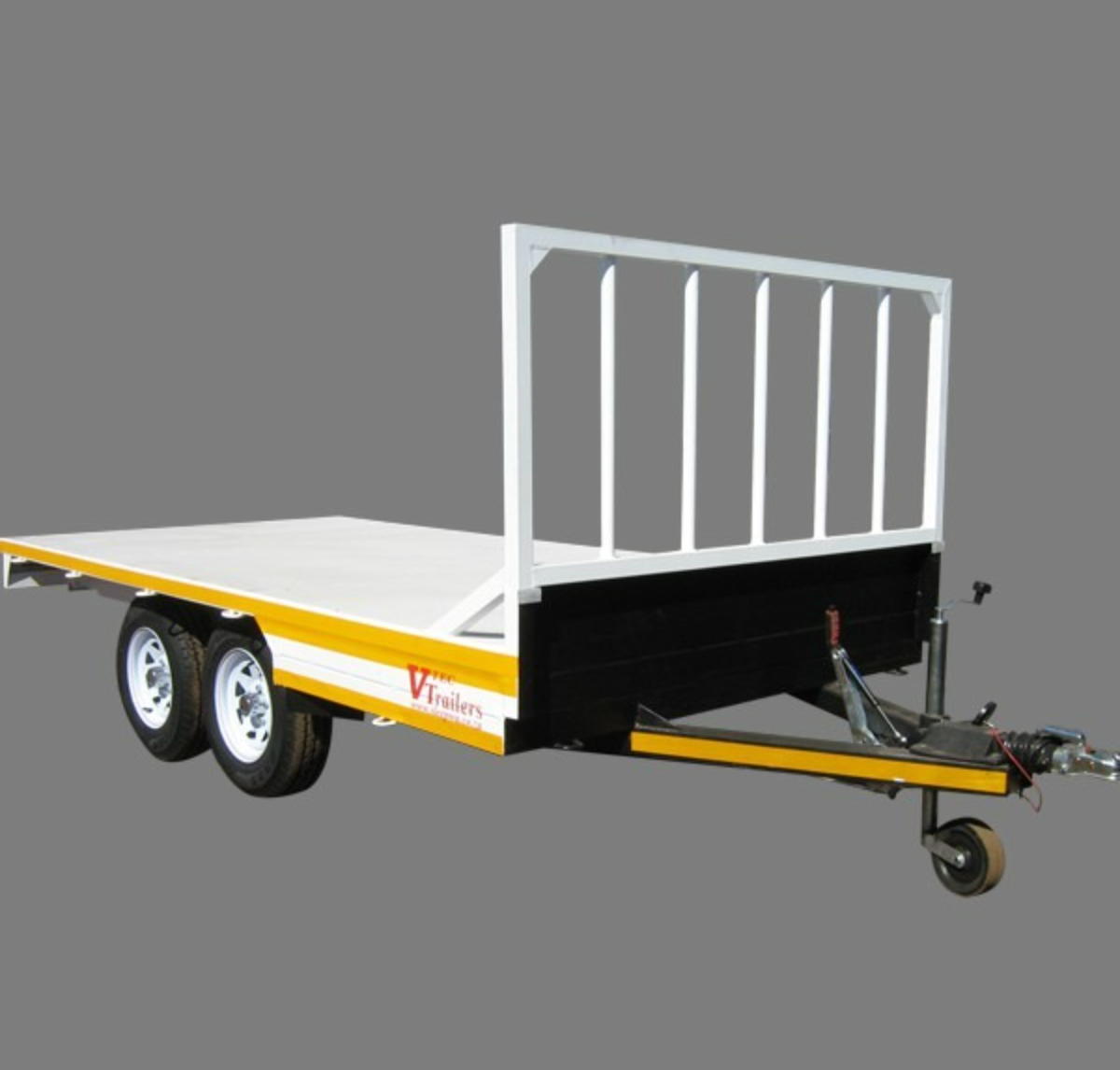

2.3 Ton Double Axle Flatbed Trailer 4.0m
Original price was: R60,800.00.R54,700.00Current price is: R54,700.00. incl. VAT
The flatbed trailer 4m is a braked 2.3 ton 4.0 m x 2.2 m open deck, wide enough for two pallets side by side or a compact machine. A 2.0 mm steel floor on twin 1 600 kg axles, wheels under the deck, lashing points throughout.
- 2500 kgGVM
- Tandem brakedAxle
- 4000 mmDeck length
- Tandem brakedBraking
Availability: 3 in stock (can be backordered)
WhatsApp about this trailerAbout this trailer
The flatbed trailer 4m is a longer, wider open deck at 4.0 m by 2.2 m, plated at 2 300 kg gross. The extra width over the 3.0 m unit is what makes it a genuine pallet-and-plant trailer: two standard pallets sit side by side, and a compact machine or a wide load rides square rather than overhanging.
What the flatbed trailer 4m carries
At 2.2 m wide the deck takes loads a 1.8 m trailer cannot: paired pallets, wide steelwork, a small excavator or a stack of sheeting. The open deck loads from any side or by forklift, and with nothing in the way a crane or telehandler can place a load straight down. It is the size builders and plant-hire operators reach for when a load is as much about width as weight.
Build and deck
The floor is a 2.0 mm steel plate on a 76 x 38 x 5 mm open-channel ladder-frame chassis, with the wheels under the trailer to keep the full 2.2 m width clear. It runs twin 1 600 kg leaf-sprung axles, is braked, and is finished in painted 2K Duco, with lashing points for securing loads on the open deck.
Specifications
| Type | Double axle flatbed trailer |
|---|---|
| GVM | 2 300 kg |
| Deck size | 4.0 m x 2.2 m, open flat |
| Floor | 2.0 mm steel plate, wheels under deck |
| Chassis | 76 x 38 x 5 mm open-channel ladder frame |
| Axles | Two, leaf sprung, 1 600 kg each |
| Sides | None (open deck) |
| Braking | Braked |
| Finish | Painted 2K Duco |
| Tare mass | Confirmed in writing on order |
Payload, GVM and licensing
Plated at 2 300 kg gross on 1 600 kg axles and braked as standard, this trailer needs a tow vehicle with matching braked towing capacity. The supplier publishes no dependable tare, so we confirm the empty mass and payload in writing before you order. Securing a wide load on an open deck sits with the towing driver under the National Road Traffic Act.
Where it sits in the range
This is the mid flatbed. The 3.0 m flatbed is narrower for tighter loads, while the 6.0 m and 8.0 m units carry longer material at higher plating. For sides on the same deck, see the matching 4.0 m dropside. Compare the range under double-axle cargo trailers.
Delivery, warranty and ordering
Delivery is free anywhere in South Africa on orders over R20 000; see our delivery page. The builder warranty, which we administer on your behalf, is under warranty, and collection from Hartswater is welcome. For a written quote, use the quote request form.
Full specification
| GVM (kg) | 2500 kg |
|---|---|
| Axle Configuration | Tandem braked |
| Braking | Tandem braked |
| Deck Length (mm) | 4000 mm |
| Suspension | Leaf spring |
| Finish | Painted 2K Duco |
| SKU | TSA-UCT-FB40-144 |
Questions about this trailer
How wide is the flatbed trailer 4m?
The deck is 2.2 m wide, enough for two standard pallets side by side or a wide load that would overhang a 1.8 m trailer.
Is it braked?
Yes, braked as standard at 2 300 kg GVM, so the tow vehicle needs matching braked towing capacity.
What is the payload?
It is plated at 2 300 kg on 1 600 kg axles. The supplier publishes no reliable tare, so we confirm empty mass and payload in writing before you order.
Can it be loaded by forklift?
Yes. The open deck with wheels under the trailer keeps the full width clear for side or forklift loading and crane placement.
Do you deliver nationwide?
Yes, free on orders over R20 000, with collection from Hartswater available.
