2700kg Double Axle Chassis Trailer 2.5m
Original price was: R48,400.00.R43,550.00Current price is: R43,550.00. incl. VAT

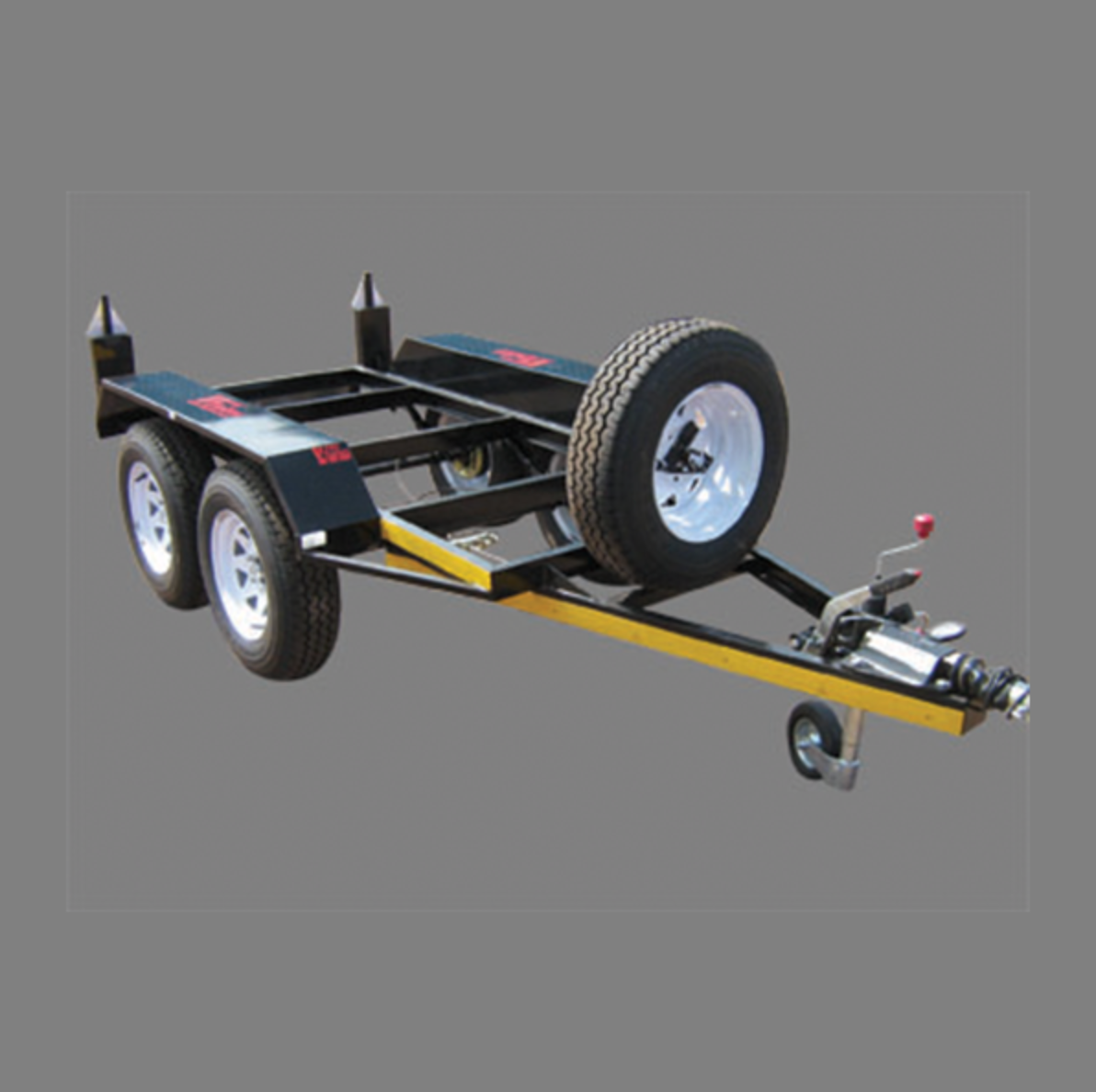

The chassis trailer 2700kg is a bare braked double-axle platform on a 2.5 m x 1.5 m frame, plated at 2 700 kg, built for a larger tank, pump or genset. Two axles keep a heavy fixed load stable, ready to fit out to your equipment.
- 3000 kgGVM
- Tandem brakedAxle
- 2500 mmDeck length
- Tandem brakedBraking
Availability: 3 in stock (can be backordered)
WhatsApp about this trailerAbout this trailer
The chassis trailer 2700kg is a bare braked double-axle platform on a 2.5 m by 1.5 m frame, plated at 2 700 kg gross, built to carry a larger tank, pump, genset or plant unit. The second axle and higher plating over the 1 500 kg single-axle chassis let it take heavier equipment while staying a bare frame you or we fit out.
What the chassis trailer 2700kg carries
At 2 700 kg GVM on two axles, this platform suits a full water or diesel bowser tank, a large pump set or a sizeable genset. Two axles spread the weight of a heavy fixed load and keep it stable on the road and steady in use, and the braked running gear controls it behind the tow vehicle. Buying the chassis bare means you pay for a frame rated to the equipment rather than modifying a general-purpose trailer.
Build and mounting
The chassis and A-frame are steel open channel in a ladder-frame layout, on braked twin axles, finished in painted 2K Duco. The mounting is specified to the equipment. Tell us the make, model and full weight of what you are fitting and we match it to the chassis and confirm the payload against tare.
Specifications
| Type | Double axle chassis trailer (bare platform) |
|---|---|
| GVM | 2 700 kg |
| Deck size | 2.5 m x 1.5 m |
| Chassis | Steel open channel, ladder frame |
| Axles | Two, braked |
| Braking | Braked |
| Fitment | Bare, mounting specified to your equipment |
| Finish | Painted 2K Duco |
| Tare and fitment | Confirmed in writing on order |
Payload, GVM and licensing
Plated at 2 700 kg gross and braked, this trailer needs a tow vehicle with real braked towing capacity and, for most drivers, an EB licence code. The equipment sets the real weight, so we confirm the payload against the trailer tare in writing before you order. The licence and combination rules are in the National Road Traffic Act.
Where it sits in the range
This is the mid chassis trailer. The 1 500 kg single-axle suits lighter equipment, and the 3 500 kg unit carries the heaviest. Fitted with a genset, the same base is our 2 700 kg generator trailer. Compare the range under chassis trailers.
Delivery, warranty and ordering
Delivery is free anywhere in South Africa on orders over R20 000; see our delivery page. The builder warranty, which we administer on your behalf, is under warranty, and collection from Hartswater is welcome. For a quote specified to your equipment, use the quote request form or WhatsApp us.
Full specification
| GVM (kg) | 3000 kg |
|---|---|
| Axle Configuration | Tandem braked |
| Braking | Tandem braked |
| Deck Length (mm) | 2500 mm |
| Finish | Painted 2K Duco |
| SKU | TSA-CHS-27-164 |
Questions about this trailer
What does the chassis trailer 2700kg carry?
A larger tank, pump set or genset. The equipment sets the real weight, so we confirm the payload against tare and specify the mounting before you order.
What licence do I need?
At 2 700 kg GVM most drivers need an EB code and matching braked towing capacity on the vehicle. We check both with you.
Why two axles?
Two axles spread a heavy fixed load and keep it stable on the road and steady in use, over a single-axle chassis.
Can you fit it out?
Yes. Fitted with a genset it becomes our 2 700 kg generator trailer; we can also mount a tank or pump to your spec.
Do you deliver nationwide?
Yes, free on orders over R20 000, with collection from Hartswater available.
